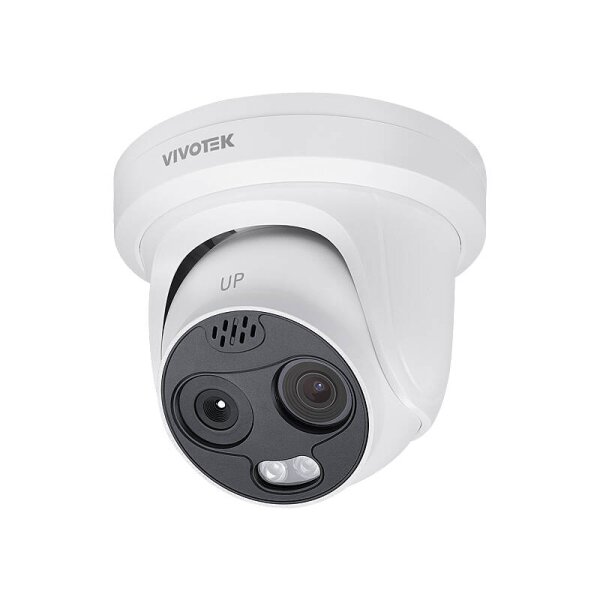

VIVOTEK TT9333-E(3.5MM) IP-Thermal Kamera

Artikelnummer: EX-10037858

Kategorie: Wärmebildkameras

Lieferzeit: 10 Werktage DE

1.359,93 €

inkl. 19% USt. ,

VIVOTEK TT9333-E(3.5MM) IP-Thermal Kamera 256 x 192 Pixel Kompakt Kamera, Thermal Kamera Blickwinkel: 48° (Objektiv-Brennweite 3,5 mm) Features: Deep Learning (intelligente Analysen), mit hochsensiblem Wärmebildsensor, zur Brandfrüherkennung (z.B. E-Ladesäulen, Lagerstätten), erkennt Temperaturveränderungen an Objekten, mit Wärmebild- & optischem Bildsensor, Objekterkennung (Mensch/Fahrzeug), MicroSD/SDHC/SDXC Card Slot, H.265, H.264, MJPEG, NDAA (National Defense Authorization Act), Smart Motion Detection, Smart VCA, AI-powered, Unterstützt Perimeterschutz Nachtsicht: per Infrarot, Weißlicht (Reichweite bis zu 35 m) Audiounterstützung: Ja SD-Karten-Slot: Ja Zoom: 4x digital

Stk

Beschreibung
Benachrichtigen, wenn verfügbar

System Information

CPU: Multimedia SoC (System-on-Chip)
Flash: 16GB
RAM: 1GB

Camera Specifications

Image Sensor:

Dual sensor: Uncooled VOx Micro bolometer
1/2.7" Progressive CMOS

Max. Resolution:

Thermal lens:

Effective pixels: 256x192
Image scale up to: 704x576

Optical lens: 2560x1440

Lens Type:

Fixed-focal (Thermal lens)
Fixed-focal (optical lens)

Focal Length:

Thermal lens: f = 3.5 mm
optical lens: f = 4 mm

Aperture:

Thermal lens: F1.0
optical lens: F1.6

Iris Type: Fixed iris
Field of View:

Thermal lens (7mm):

48°(Horizontal)
36° (Vertical)

optical lens (8mm):

92° (Horizontal)
46°(Vertical)

Illuminators: Built-in IR Illuminator up to 35 meters White light for strobe light warning
Pan/Tilt/Zoom Functionalities: ePTZ: 4x digital zoom
Storage: MicroSD/SDHC/SDXC card (256GB capacity supported)
Pixel Size: 12 µm
Spectral Range: 8 ~ 14 µm
Sensitivity: NETD < 50 mK

Video

Compression: H.265, H.264, MJPEG
Maximum Frame Rate:

Thermal: 25 fps @ 704x576
Optical: 25 fps @ 2560x1440

Maximum Streams: 2 simultaneous streams each sensor
Main Stream:

Thermal: 25fps@704x576
Optical: 25fps@2560x1440, 2304x1296,1920x1080, 1280x720

3rd Stream:

Thermal: 25fps@704x576 , 352x240, 256x192
Optical: 25fps@704x576 , 640x480

Video Streaming: Adjustable resolution, CBR/VBR, Smart Encode
Image Settings:

General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation)
Thermal settings: white balance, image adjustment (brightness, contrast, sharpness)
Privacy mask Scheduled profile settings

Audio

Audio Capability: Two-way audio
Compression: G.711, RAW_PCM
Interface:

External microphone input
External line output, Built-in microphone & speaker

Network

Users: Live viewing for up to 10 clients
Security: Access list, Password protection, user access log, user account management
Protocols: IPv4/IPv6, HTTP, RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPOE, SMTP, HTTPS, 802.1x, QOS, NTP, TCP/IP, FTP, UPnP, DDNS, ICMP, IGMP
Interface:

10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.

ONVIF: Profile G, S, T supported, specification available at www.onvif.org

AI Analytics

Compute Capability: SoC with built-in hardware deep learning accelerator (1T)
Application

Temperature measurement alarms (difference, threshold, section, rise),
Early Fire Detection (Fire spot detection, Smoking detection, Smoke & flame detection)
VCA (Intrusion, Single line crossing, Double line crossing, Loitering, Wrong way, Enter, Leave)
Support VCA alarms triggering by person, car, person or car Support temperature alarms triggering by ignoring person, car, person or car

Solution Integration

Video modtion detection: Smart motion detection

Alarm and Event

Event Trigger: Motion detection, I/O alarm, Disk alarm, VCA alarm, Temperature alarm
Event Action: Event notification via audio clip, digital output, email, FTP, SD card white light flashing and horn warning

General

Connectors:

RJ-45 cable connector for 10/100 Mbps Network/PoE connection
Audio input
Audio output
DC 12V power input
AC 24V power input
Digital input *1
Digital output *1
RS485

LED Indicator: System power and status indicator
Power Input: AC 24V, DC 12V, IEEE 802.3af PoE Class 3
Power Consumption: Max.10W
Dimensions: f140 × 117.8 mm
Weight: 1040g
Certifications:

EMC: FCC (FCC Part 15 Subpart B), UKCA (BS EN 55032 Class B)
Environment: IP66

Operating Temperature: Working Temperature: -40°C ~ 60°C (-40°F ~ 140°F)
Humidity: 90%

System Requirements

Operating System:

Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)

Web Browser:

Chrome 58.0 or above
Internet Explorer 10/11

Other Players: VLC: 1.1.11 or above

Temperature Measurement

Temperature Range: -20°C to 150°C (-4°F to 302°F)
Measurement Rule: Point, line, polygon (up to 20 rules in total)
Temperature Alarm: Threshold alarm, Temperature difference alarm, Temperature rise alarm, Section alarm
Accuracy: ± 2°C / ±2%

Included Accessories

Packing Contents: Quick installation guide, alignment sticker, screw pack, waterproof accessory bag

VCA Detection Range

VCA Detection Distance (Human: 1.8x0.5m)3: 30m (98.4ft)
VCA Detection Distance (Vehicle: 4x1.5m)4: 90m (295.3ft)
Temperature Measurement

Object: 0.2x0.2m5: 11.7m (38.4ft)

Fire Detection

Object: 1x1m6: 208m (682ft)
Object: 0.2x0.2m7: 41.7m (136ft)
Smoking Detection 8: 13m (42ft)

Johnson s Criteria (Thermal image)

Human 1.8x0.5m

Detection (1.5 pixels)10: 146m (479ft)
Recognition (6 pixels)11: 36m (118ft)
Identification (12 pixels)12: 18m (59ft)

Vehicle 4x1.5m

Detection (1.5 pixels)13: 447m (1466ft)
Recognition (6 pixels)14: 112m (367ft)
Identification (12 pixels)15: 56m (183ft)
