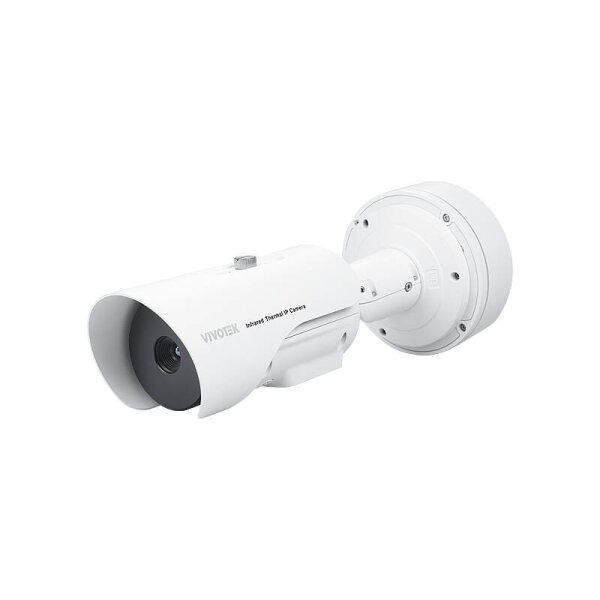

VIVOTEK TB9332-E(35MM) IP-Thermal Kamera

Artikelnummer: EX-10037864

Kategorie: Wärmebildkameras

Lieferzeit: 10 Werktage DE

8.581,02 €

inkl. 19% USt. ,

VIVOTEK TB9332-E(35MM) IP-Thermal Kamera 640 x 512 Pixel Bullet Kamera, Thermal Kamera Blickwinkel: 12° (Objektiv-Brennweite 35 mm) Features: Deep Learning (intelligente Analysen), mit hochsensiblem Wärmebildsensor, zur Brandfrüherkennung (z.B. E-Ladesäulen, Lagerstätten), erkennt Temperaturveränderungen an Objekten, Objekterkennung (Mensch/Fahrzeug), MicroSD/SDHC/SDXC Card Slot, NDAA (National Defense Authorization Act), Smart Motion Detection, Smart VCA, AI-powered, Unterstützt Perimeterschutz, H.265, H.264 Audiounterstützung: Ja SD-Karten-Slot: Ja Zoom: 4x digital Schutzart: IP 66

Stk

Beschreibung

System Information

CPU: Multimedia SoC (System-on-Chip)
Flash: 16GB
RAM: 1GB

Camera Specifications

Image Sensor:

Dual sensor: Uncooled VOx Micro bolometer

Max. Resolution:

Effective pixels: 640x512
Image scale up to: 1280x1024

Lens Type: Fixed-focal (Thermal lens)
Focal Length: f = 35 mm
Aperture: F1.0
Iris Type: Fixed iris
Field of View:

12° (Horizontal)
10°(Vertical)

Pan/Tilt/Zoom Functionalities: ePTZ: 4x digital zoom
Storage: MicroSD/SDHC/SDXC card (256GB capacity supported)
Pixel Size: 12 µm
Spectral Range: 8 ~ 14 µm
Sensitivity: NETD < 40 mK

Video

Compression: H.265, H.264
Maximum Frame Rate: 25 fps @ 2880x1620
Maximum Streams: 2 simultaneous streams each sensor
Main Stream: 25fps @ 1280x1024, 1280x720, 640x512
3rd Stream: 25fps @ 704x576 , 352x240
Video Streaming: Adjustable resolution, CBR/VBR, Smart Encode
Image Settings:

General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation)
Thermal settings: white balance, image adjustment (brightness, contrast, sharpness)
Privacy mask Scheduled profile settings

Audio

Audio Capability: Two-way audio
Compression: G.711, RAW_PCM
Interface:

External microphone input
External line output

Network

Users: Live viewing for up to 10 clients
Security: Access list, Password protection, user access log, user account management
Protocols: IPv4/IPv6, HTTP, RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPOE, SMTP, HTTPS, 802.1x, QOS, NTP, TCP/IP, FTP, UPnP, DDNS, ICMP, IGMP
Interface:

10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.

ONVIF: Profile G, S, T supported, specification available at www.onvif.org

AI Analytics

Compute Capability: SoC with built-in hardware deep learning accelerator (1T)
Application

Temperature measurement alarms (difference, threshold, section, rise),
Early Fire Detection (Fire spot detection, Smoking detection, Smoke & flame detection)
VCA (Intrusion, Single line crossing, Double line crossing, Loitering, Wrong way, Enter, Leave)
Support VCA alarms triggering by person, car, person or car Support temperature alarms triggering by ignoring person, car, person or car

Solution Integration

Video modtion detection: Smart motion detection

Alarm and Event

Event Trigger: Motion detection, I/O alarm, Disk alarm, VCA alarm, Temperature alarm
Event Action: Event notification via audio clip, digital output, email, FTP, SD card

General

Connectors:

RJ-45 cable connector for 10/100 Mbps Network/PoE connection
Audio input
Audio output
DC 12V power input
AC 24V power input
Digital input *2
Digital output *2
BNC
RS485

LED Indicator: System power and status indicator
Power Input: AC 24V, DC 12V, IEEE 802.3af PoE Class 2
Power Consumption: Max.5W
Dimensions: ø141.8 x 367.4 mm
Weight: 2350g
Certifications:

EMC: FCC (FCC Part 15 Subpart B), UKCA (BS EN 55032 Class B)
Environment: IP66

Operating Temperature: Working Temperature: -40°C ~ 60°C (-40°F ~ 140°F)
Humidity: 90%

System Requirements

Operating System:

Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)

Web Browser:

Chrome 58.0 or above
Internet Explorer 10/11

Other Players: VLC: 1.1.11 or above

Temperature Measurement

Temperature Range: -20°C to 150°C (-4°F to 302°F)
Measurement Rule: Point, line, polygon (up to 20 rules in total)
Temperature Alarm: Threshold alarm, Temperature difference alarm, Temperature rise alarm, Section alarm
Accuracy: ± 2°C / ±2%

Included Accessories
