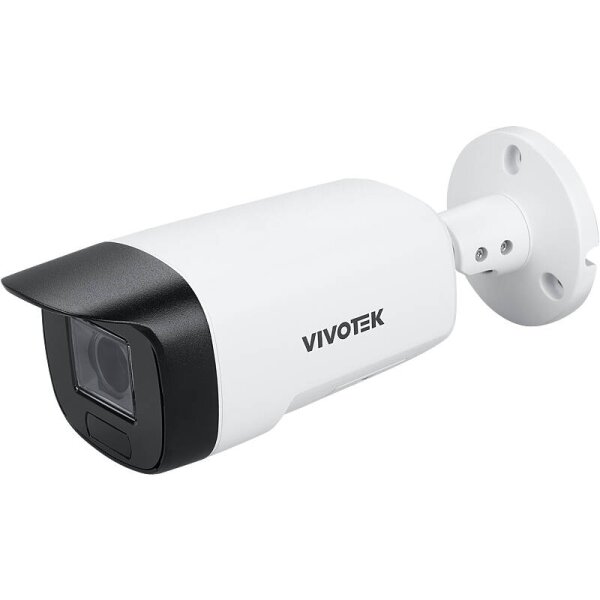

VIVOTEK IB9389-EHV-V3 IP-Kamera 5MPx T/N IR PoE

Artikelnummer: EX-10037913

Kategorie: Bullet Kameras

Lieferzeit: 10 Werktage DE

484,63 €

inkl. 19% USt. ,

VIVOTEK IB9389-EHV-V3 IP-Kamera 5MPx T/N IR PoE 5 Megapixel Bullet Kamera Blickwinkel: 103,4° (Objektiv-Brennweite 2,8 mm) Features: Deep Learning (intelligente Analysen), WDR Pro (Wide Dynamic Range), Trend Micro IoT Security, MicroSD/SDHC/SDXC Card Slot, H.265, H.264, MJPEG, Smart Stream III, 3DNR, Smart IR, NDAA (National Defense Authorization Act), Smart Motion Detection, Smart VCA, AI-powered, Unterstützt Perimeterschutz Nachtsicht: per Infrarot (Reichweite bis zu 40 m) Audiounterstützung: Ja Vandalismusschutz: Ja SD-Karten-Slot: Ja

Stk

Beschreibung

System Information

CPU: Multimedia SoC (System-on-Chip)
Flash: 8 GB
RAM: 2 GB

Camera Specifications

Image Sensor: 1/2.8" Progressive CMOS
Max. Resolution: 2560x1920 (5MP)
Lens Type: Fixed-focal
Focal Length: f = 2.8 mm
Aperture: F2.0
Iris Type: Fixed iris
Field of View:

103.4° (Horizontal)
75.3° (Vertical)
135.2° (Diagonal)

Shutter Time: 1/5 sec. to 1/32,000 sec.
WDR Technology: WDR Pro
Day/Night: Yes
Removable IR-cut filter: Yes
Illuminators: Built-in IR illuminators, effective up to 40 meters with Smart IR, IR LED*4
Minimum Illumination:

0.055 lux @ F2.0 (Color)
0.005 lux @ F2.0 (B/W)
0 lux with IR illumination on

Tilt Range: 80°
Rotation Range: 350°
Pan/Tilt/Zoom Functionalities: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage: Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS)
Built-in Installation Aids: Pixel calculator

Video

Compression: H.265, H.264, MJPEG
Maximum Frame Rate: 30 fps @ 2560x1920 (5MP)
Maximum Streams: 3 video streams (Up to 8 configurable profiles)
Main Stream:

30fps @2560x1920,2048x1536,1920x1440,1600x1200,1280x960,800x600,640x480 (4:3)
30fps @ 2560x1440, 1920x1080, 1600x904, 1360x768,1280x720, 640x360 (16:9)
60 fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9)

3rd Stream:

30fps @ 1920x1440, 1600x1200, 1280x960, 800x600, 640x480 (4:3)
30fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9)
60 fps @ 1280x720, 640x360 (16:9)

2nd Stream:

30fps @ 1280x960, 800x600, 640x480 (4:3)
30 fps @ 1280x720, 640x360 (16:9)
60 fps @ 1280x720, 640x360 (16:9)

S/N Ratio: 55 dB
Dynamic Range: 120 dB
Video Streaming: Adjustable resolution, quality and constant bit rate control, Smart Stream III
Image Settings:

General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings
Illuminators: illuminators, anti-overexposure, VCA-based Smart IR III
Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, EIS (built-in gyro sensor), scene mode (auto, deblur)
Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR
Focus: zoom, focus
Privacy mask pixel calculator Scheduled profile settings

Audio

Audio Capability: Two-way audio (Full duplex)
Compression: G.711, G.726, MPEG-2 AAC-LC
Interface:

Built-in microphone
External microphone Input
External line output

Effective Range: 5 meters

Network

Users: Live viewing for up to 10 clients

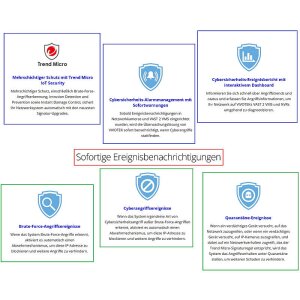

Security: Access list, CSRF protection, digest authentication, HTTPS , IEEE 802.1x, Password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management, Built-in FIPS 140-2 Level 2 certified Trusted Platform Module (TPM)
Protocols: 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, , NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP
Interface: 10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF: Profile G, S, T supported, specification available at www.onvif.org

AI Analytics

Compute Capability: SoC with built-in hardware deep learning accelerator
Vision Object Analytics:

Object Detection: People, Vehicle (4-wheeled, 2-wheeled)
Attribute Extraction: People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color)
Re-Search Extraction Path Extraction

Application:

Deep Learning VCA (Smart Motion Detection, Smart VCA)
Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Unattended object detection, Missing object detection, Face detection, Crowd detection

Application available with license:

Running detection, Parking Violation Detection, Restricted Zone Detection
Support for more analytic applications and free trial, please visit vivotek.com/video-analytics

RealSight Engine: Smart IR III, Deblur, WDR, White Balance, Exposure Control

Solution Integration

VADP Package: Trend Micro (Default, 3-year free trial)
Video modtion detection: Motion Detection (Five-window video motion detection)

Alarm and Event

Event Trigger: Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
Event Action: Event notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD card
File upload via email, HTTP, FTP/SFTP, NAS server, SD card

General

Connectors:

RJ-45 cable connector for 10/100 Mbps Network/PoE connection
Audio line input
Audio line output
Digital input: 1
Digital output: 1

LED Indicator: System power and status indicator
Power Input: IEEE 802.3af PoE Class 3
Power Consumption: Max. 12.4W/ 9.6W (IR on/off)
Dimensions: ø 92 x 258.5 mm
Weight: 1.03 kg
Certifications:

EMC: UKCA (BS EN 55032/BS EN 55035 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR32 Class A), VCCI (VCCI-CISPR 32 Class A)
IC (ICES-003 Issue 7, Class A) Safety: UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 62368-1, IEC/EN 62471)
UKCA (BS EN IEC 62368-1) Environment: IK10 (IEC 62262), IP66, IP67 (IEC 60529)
IA: BIS (IS 13252), BSMI (EMC: CNS 13438, Safety: CNS 14336-1)
