VIVOTEK CC9390-HV IP-Kamera 4K T/N PoE IP66

Artikelnummer: EX-10037582

Kategorie: Boxed Type

Lieferzeit: 10 Werktage DE

698,10 €

inkl. 19% USt. ,

VIVOTEK CC9390-HV IP-Kamera 4K T/N PoE IP66 4K Ultra HD Dome Kamera, Panorama Kamera Blickwinkel: 180° (Objektiv-Brennweite 2,53 mm) Features: Deep Learning (intelligente Analysen), WDR Pro (Wide Dynamic Range), SNV (Supreme Night Visibility), Trend Micro IoT Security, MicroSD/SDHC/SDXC Card Slot, H.265, H.264, MJPEG, Smart Stream III, 3DNR, NDAA (National Defense Authorization Act), Smart Motion Detection, Smart VCA, 180° Panoramic View Audiounterstützung: Ja Vandalismusschutz: Ja SD-Karten-Slot: Ja Zoom: 48x digital

Stk

Beschreibung

System Information

Model: CC9390-HV
CPU: Multimedia SoC (System-on-Chip)
Flash: 8 GB
RAM: 2 GB

Camera Features

Image Sensor: 1/1.8" Progressive CMOS
Max. Resolution: 3840x2160 (8MP)
Lens Type: Fixed-focal
Focal Length: f = 2.53mm
Aperture: F2.4
Iris Type: Fixed Iris
Field of View:

180° (Horizontal)
103° (Vertical)
180° (Diagonal)

Shutter Time: 1 sec. to 1/100,000 sec.
WDR Technology: WDR Pro
Day/ Night: Yes
Removable IR-cut Filter: Yes
Minimum Illumination:

0.08 lux (Color, 30IRE)
0.005 lux (B/ W 30IRE)

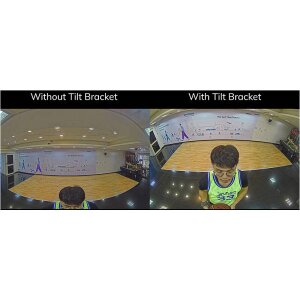

Tilt Range: ±20°
Pan/Tilt/Zoom Functionalities: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage: Seamless Recording to MicroSD/ SDHC/ SDXC card and recording to network-attached storage (NAS)
Built-in Installation Aids: Pixel calculator

Video

Video Compression: H.265/H.264/MJPEG
Maximum Frame Rate: 30 fps @ 3840x2160
Maximum Streams: 3 video streams (Up to 8 configurable profiles)
S/N Ratio: 62 dB
Dynamic Range: 120 dB
Video Streaming: Adjustable resolution, quality and constrained bit rate control, Smart Stream III
Image Settings:

General settings: video settings, video orientation (flip, mirror, rotation), day/night settings, smart image Overlay settings
Illuminators: illuminators, anti-overexposure
Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, scene mode (auto)
Exposure: exposure strategy (measurement window, metering mode) exposure control (exposure level, exposure time, gain control), image sharpener for motion blur, AE speed adjustment, WDR
Privacy mask Pixel calculator Scheduled profile settings

Audio

Audio Capability: One-way Audio
Audio Compression: MPEG-2 AAC-LC, G.711, G.726
Audio Interface: Built-in microphone
Effective Range: 5 meters

Network

Users: Live viewing for up to 10 clients
Security: Access list, Account block , Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS , IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), User access log, User account management
Protocols: 802.1X, ARP, Bonjour, CIFS/ SMB, DDNS, DHCP, DNS, FTP/ SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS (CoS/ DSCP), RTSP/ RTP/ RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP
Interface:

10Base-T/100 BaseTX Ethernet (RJ-45)
*It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ ETL standard.

ONVIF: Profile G, S, T supported

AI Analytics

Compute Capability: SoC with built-in hardware deep learning accelerator
Vision Object Analytics: Object Detection: People, Vehicle (4-wheeled, 2-wheeled) Attribute Extraction: People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color) Re-Search Extraction Path Extraction
Application: Deep Learning VCA (Smart Motion Detection, Smart VCA) Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Unattended object detection, Missing object detection, Face detection, Crowd detection
Application available with license: Running detection, Parking Violation Detection, Restricted Zone Detection

Solution Integration

Applications Trend Micro IoT Security (3-year free trial)

Alarm and Event

Event Trigger: Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot, video loss, video restoration
Event Action: Event notification via audio clip, camera link, email, HTTP, FTP/ SFTP, NAS server, SD card File upload via email, HTTP, FTP/ SFTP, NAS server, SD card

General

Connectors: RJ-45 cable connector for 10/100 Mbps Network/ PoE connection
LED Indicator: System power and status indicator
Power Input: IEEE 802.3af PoE Class 0
Power Consumption: MAX. 9.96W
Dimensions: 115 x 65 x 59 mm
Weight: 338 g
Certifications: EMC: UKCA (BS EN 55032: 2015 +A11: 2020, BS EN 55035: 2017 +A11: 2020), FCC (FCC Part 15 Subpart B Class A), RCM (AS/ NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), ICES-003 Issue 7 Safety : UL (UL 62368-1), CB (IEC/ EN 62368-1 including annex Y, IEC/ EN 62471) Environment: IK10 (IEC 60529), IP66 (IEC 60529) IA: BIS (IS 13252), BSMI (EMC: CNS 15936, Safety : CNS 15598-1)
Operating Temperature:
