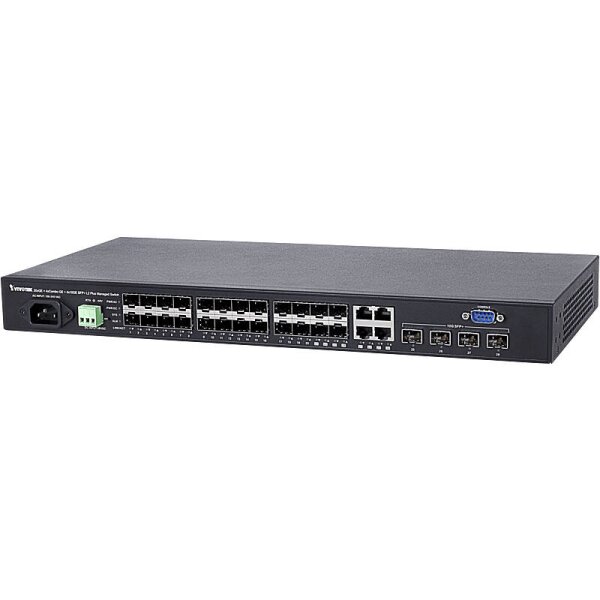

VIVOTEK AW-GTS-287A Switch L2 managed 28-Port, PoE

VIVOTEK AW-GTS-287A Switch L2 managed 28-Port, PoE

Artikelnummer: EX-10036503

Kategorie: Switches

Lieferzeit: 8 Werktage DE

1.954,58 €

inkl. 19% USt. ,

VIVOTEK AW-GTS-287A Switch L2 managed 28-Port, PoE Switch PoE-Stromversorgung Anwendung: Videoüberwachung Farbe: Schwarz

Stk

Beschreibung

VIVOTEK AW-GTS-287A Switch L2 managed 28-Port, PoE Switch PoE-Stromversorgung Anwendung: Videoüberwachung Farbe: Schwarz

Model: AW-GTS-287A
Product Description: 20xGE SFP + 4xCombo GE + 4x10G SFP+ L2 Plus Managed Switch

Managing IP Surveillance Functions

Management:

Auto Search VIVOTEK Device: up to 1000 pcs
Surveillance Device Management List: V
DHCP Server Function: V
VIVOTEK Device Account/Password Setting: V
VIVOTEK Device Static IP Setting: V
VIVOTEK Device Grouping Setting for VLAN: V
VIVOTEK Device Name Edit: V
VIVOTEK Camera/Video Server Reboot/Restore Default: V
VIVOTEK Device Re-direct Link: V
VIVOTEK Device On/Off Line Status: V

E-Map View:

Topology View: V
Floor View: V
Google Map View: V

Maintenance:

VIVOTEK Camera/Video Server Configuration File Export/Import: V
VIVOTEK Cameras/Video Server Configuration File Management: V
Floor Image Management: V
Export Surveillance Management Device List: V
Security: V
Trouble Shooting: V
Traffic Monitoring: V

Managed L2 Switch Functions

Port Configuration:

100M/1G SFP Port: 20
GE RJ45/SFP Combo Port: 4
100M/1G/10GbE SFP+ Port: 4
Total Ports: 28
Console Port: RS232

HW Performance:

Switching Bandwidth: 128Gbps
MAC Address: 32K
Jumbo Frames: 10056 Bytes

L2 Switching:

Spanning Tree:

IEEE802.1D (STP): V
IEEE802.1w (RSTP): V
IEEE802.1s (MSTP): V

VLAN:

802.1Q Tag-base VLAN: 4096 VLAN IDs
Port-based VLAN: V
Voice VLAN: V
Private VLAN: V
Guest VLAN: V
Q-in-Q (Double Tag) VLAN: V
802.1v Protocol VLAN: V
MAC-based VLAN: V
IP Subnet-based VLAN: V

Port Grouping:

IEEE 802.3ad with LACP (Dynamic): up to 16 ports in a group , max up to 14 groups
Static Trunk: up to 8 ports in a group , max up to 14 groups

IGMP Snooping (v1/v2/v3): V
MLD Snooping: V
GARP VLAN Registration Protocol (GVRP): V
Loop Detection: V

L3 Features:

IP Host Table: V
Static Route: V
Static ARP: V
DHCP Server: V

QoS Features:

Hardware Queues: 8
Class of Service:

Port Based: V
802.1p: V
DSCP: V
TCP/UDP (IPv4/IPv6): V

Rate Limiting:

Ingress: V
Egress: V

Priority Queue Scheduling:

WRR: V
Strict Priority: V

IPv4 QoS (QCEs): V
IPv6 QoS (QCEs): V

Security:

Port Security (MAC-based): V
IEEE802.1x: V
ACLs:

L2/L3/L4: V
IPv6 Support: V

IP Source Guard (IP-MAC-Port Binding): V
Storm Control: V
RADIUS / TACACS+ Authentication: V
Layer 3 Isolation (Allow/disallow routing between IP Subnets): V
HTTPs and SSL (Secured Web): V
SSH v1.5/v2.0 (Secured Telnet Session): V
BPDU Guard: V
STP Root Guard: V
DHCP Snooping: V

Management:

SNMP (v1, v2c, v3): V
RMON (1,2,3 & 9 groups): V
Software Upgrade: V
Configuration Export/Import: V
DHCP:

Client: V
Ready: V
Option 66/67/82: V

Event/Error Log:

Syslog: V
SMTP (RFC821): V

Management Access Filtering:

SNMP: V
Web: V
Telnet: V
SSH: V

Port Mirroring: V
LLDP (IEEE802.1AB): V
LLDP-MED (IEEE802.1AB): V
CDP Aware: V
sFlow: V
NTP/SNTP (RFC2030): V

IPv6 Support:

Dual IPv6/IPv4 stack: V
IPv6 Web/SSL: V
IPv6 SNTP (Simple Network Time Protocol): V
IPv6 Telnet Server/SSH: V
IPv6 Ping Trace Route: V
IPv6 TFTP: V
IPv6 RADIUS: V
IPv6 Syslog: V
IPv6 DNS Client: V
IPv6 Protocol-based VLANs: V
IPv6 SNMP: V

Environmental Specifications:

Operating Temperature: -20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity: 10 ~ 90% RH
Storage Temperature: -40°C ~ 85°C (-40°F ~ 185°F)
Storage Humidity: 10 ~ 90% RH

Mechanical Specifications:

Dimensions: 44 (H) x 442 (W) x 211 (D) mm
Weight: 3.1 kg

Power Source:

AC/DC Dual input: 100~240V AC / 24~72V DC
Power Consumption (Full load): 40W

Certifications:

Certifications: FCC, LVD, VCCI

Accessories:

Included Accessories: Power Cord, QIG, CD Manual, Rack Mount Kit, Console cabl

Angaben zur Produktsicherheit:

Hersteller:
Vivotek EMEA
Zandsteen 15
2132 MZ Hoofddorp
Kontakt: lynn.chiang@vivotek.com

Hersteller:	Vivotek
