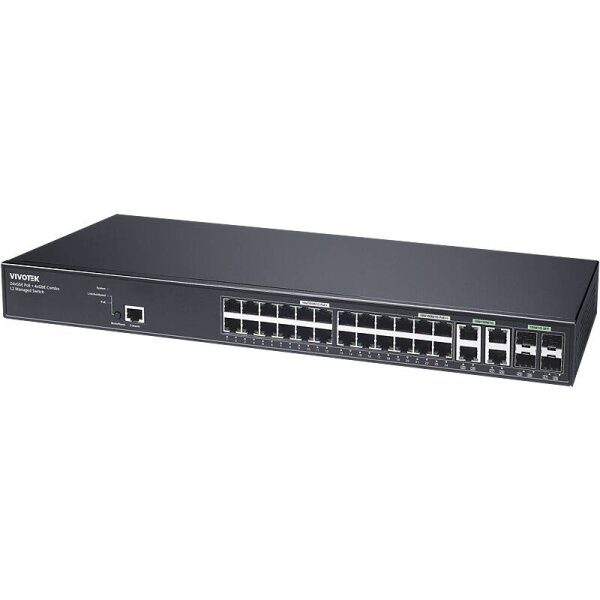

VIVOTEK AW-GEV-288A-370 Switch L2 man. 28-Port PoE

VIVOTEK AW-GEV-288A-370 Switch L2 man. 28-Port PoE

Artikelnummer: EX-10037119

GTIN: 4710469355288

Kategorie: Switches

Lieferzeit: 7 Werktage DE

1.028,09 €

inkl. 19% USt. ,

Hersteller: Vivotek

Switch | PoE-Stromversorgung | Anwendung: Videoüberwachung | Farbe: Schwarz

Stk

Beschreibung

BESCHREIBUNG

VIVOTEK AW-GEV-288A-370 Switch L2 managed 28-Port, PoE

Produktbesonderheiten:

Topologieansicht, Etagenansicht, Kartenansicht
Verkehrsmonitor
Geräteliste
DHCP-Server
Non-Stop-PoE
802.3 af/at/bt Hybrid, BT PoE-Port max. 90W
Erweiterter PoE-Modus bis zu 250 MB

Passende SFP-Module:

SFP-1000-MM85-X5 1.25G, MMF, 0.5km
SFP-1000-MM13-02 1.25G, MMF, 2km
SFP-1000-SM13-10 1.25G, SMF, 10km
SFP-1000-SM13-40 1.25G, SMF, 40km
SFP-1000-CPTX-X1 1G SFP to RJ45

EIGENSCHAFTEN

Produktart

Typ: Switch
Einsatzbereich: Innenbereich
Farbe: Schwarz
Funktionen: PoE-Stromversorgung
Anwendung: Videoüberwachung

Ausstattung

Besonderheiten: mit PoE-Switch (Stromversorgung für Kameras) NDAA (National Defense Authorization Act) Google Map View Topology View Floor View Auto Discovery Live Streaming Device Management Device Status VLAN Setting VivoCam L2 Managed
Anschlüsse: RJ-45 (LAN) RJ-45 PoE (LAN) 100 - 240 V AC SFP 24x RJ45 Port 10M/100M/1G 4x RJ45/SFP Combo Ports Gigabit

Sonstiges

Tiefe: 211 mm
Gewicht: 3,2 kg
Höhe: 44 mm
Breite: 442 mm

Stromversorgung

Spannungsversorgung: 100 - 240 V AC

TECHNISCHE DATEN

Model: AW-GEV-288A-370
Short Highlight: 24xGbE PoE + 4xGbE Combo
VIVOCAM L2 Managed PoE Switch
Port Configuration
Gigabit RJ45 Port: 24
Gigabit Combo Port: 4
Total Ports: 28
Console Port: 1
HW Performance
Switching Bandwidth: 56Gbps
Forwarding Capacity: 41.7Mpps
MAC Address: 8K
Jumbo Frames: 9216 Bytes
Network
IPv4/IPv6: V
Surveillance Features
Network Device: up to 256 pcs
PoE Reboot: V
Surveillance Device Management List: V
DHCP Server Function: V
VIVOTEK Device Account/Password Setting: V
VIVOTEK Device Grouping Setting for VLAN: V
VIVOTEK Device Name Edit: V
VIVOTEK Camera/Video Server Reboot/Restore Default
V
VIVOTEK Device Re-direct Link: V
VIVOTEK Device On/Off Line Status: V
E-Map View
Topology View: V
Floor View: V
Google Map View: V
Maintenance
VIVOTEK Camera/Video Server Configuration File
Export/Import: V
Floor Image Management: V
Export Surveillance Management Device List: V
Cable Diagnostics: V
Traffic Monitoring: V
L2 Managed Features
Spanning Tree
IEEE802.1D (STP): V
IEEE802.1w (RSTP): V
IEEE802.1s (MSTP): V
Trunking
IEEE802.1d (LACP): V
Static Aggregation: V
VLAN
802.1Q Tag-based VLAN: 4096 VLAN IDs
Port-based VLAN: V
Private VLAN Edge (PVE): V
GARP VLAN: V
Q-in-Q (Double Tag): V
Protocol-based VLAN: V
MAC-based VLAN: V
Voice VLAN: V
IP Subnet-based VLAN: V
Multicast VLAN Registration (MVR): V
IGMP Snooping (v1/v2): V
DHCP Relay: V
MLD v1/v2 Snooping: V
QoS Features
Hardware Queues: 8
Classification
Port Based: V
802.1p: V
Rate Limiting
Ingress: V
Egress: V
Per Port: V
Priority Queue Scheduling
WRR: V
DSCP &amp. Class of Service: V
Security
IEEE802.1x
RADIUS Authentication: V
IGMP-RADIUS Based: V
Secure Sockets Layer (SSL): V
Port Security: V
IP Source Guard: V
Storm Control: V
Layer 2 Isolation Private VLAN Edge (PVE): V
RADIUS/TACACS+: V
Loop Detection: V
DHCP Snooping: V
ACLs
Up to 384 Entries: 4096 VLAN IDs
Source and Destination MAC, VLAN ID or IP Address,
Protocol, Port: V
(DSCP) / IP Precedence: V
TCP/ UDP Source and Destination Ports: V
802.1p Priority: V
ICMP Packets: V
Ethernet Type: V
TCP Flag: V
Management
SNMP (v1, v2c, v3): V
RMON (1,2,3 &amp. 9 groups): V
DHCP Server &amp. Client: V
Port Mirroring: V
UPnP: V
LLDP (IEEE802.1ab): V
LLDP-MED: V
S-Flow: V
Firmware Upgrade: V
NTP: V
PoE Management
PoE On/Off Control: V
PoE Alive Checking for PD: V
PoE Scheduling: V
Power Delay: V
Non-Stop PoE: V
Extended PoE Mode (up to 250m/10mbps): V
PoE Function
IEEE 802.3af/at/bt PoE Standard Compliant: V
Number of PoE Output Port: 24
PoE Output Power
Port 1-20 at 30W
Port 21-24 bt 90W
Totoal PoE Power Budget: 370W
PoE Pin Assignment Port
Port 21-24 bt: 4 pairs 1/2 (+), 3/6 (-) and
4/5 (+), 7/8 (-)
Port 1-20 af/at: 2 pairs 1/2 (+), 3/6 (-)
Environmental Specifications
Operating Temperature: -10°C ~ 50°C (14°F ~
122°F)
Storage Temperature: -20°C ~ 70°C (-4°F ~ 158°F)
Operating Humidity: 10 ~ 90% RH
Mechanical Specifications
Dimensions: 442 (W) x 44 (H) x 211(D) mm
Weight: 3.2 kg
Power Source
AC Input: 100V ~ 240V
Frequency: 50 ~ 60 Hz
Certifications
Certifications: UL, UKCA, FCC, VCCI, LVD,
ICES UL, UKCA, FCC, VCCI, LVD, ICES
Accessories
Included Accessories: Power Cord, QIG, CD
Manual, Rack Mount Kit

LIEFERUMFANG

1x VIVOTEK AW-GEV-288A-370 Switch L2 managed 28-Port, PoE
