Teltonika OTD140 Outdoor-Router 4G LTE PoE DualSim

Teltonika OTD140 Outdoor-Router 4G LTE PoE DualSim

Artikelnummer: EX-10038171

GTIN: 4779027312927

Lieferzeit: 8 Werktage DE

245,07 €

inkl. 19% USt. ,

Hersteller: Teltonika

Outdoor-Router zur mobilen Videoüberwachung, IoT-Anwendungen. | 4G LTE (Cat 4), 3G, 2G:Stabile und schnelle Mobilfunkverbindungen für eine zuverlässige Datenübertragung. | PoE In & Out:1 x PoE-In- und 1 x PoE-Out-Port | Dual SIM:Automatische Failover-Funktion, flexible Switching-Szenarien für maximale Ausfallsicherheit | Protokollunterstützung:Unterstützt zahlreiche Protokolle für IoT-Anwendungen. | Umfangreiche Anpassungsmöglichkeiten:Volle Kompatibilität mit Teltonika Networks' Remote Management System (RMS) für effiziente Fernverwaltung.

Stk

Beschreibung

BESCHREIBUNG

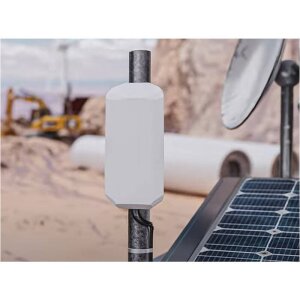

Teltonika OTD140 Outdoor-Router 4G LTE PoE DualSim - Outdoor-Router zur mobilen Videoüberwachung

Der Teltonika Outdoor-Router OTD140 ist mit einem speziellen, robusten IP55-Kunststoffgehäuse und einer integrierten Montagehalterung ausgestattet. Dadurch ist dieser 4G-Outdoor-Router einfach zu installieren und hält den Umgebungsbedingungen im Freien stand. Darüber hinaus verfügt er über LTE-Cat-4-Konnektivität, RMS-Kompatibilität für Fernverwaltungsfunktionen und zwei PoE-In/Out-Ethernet-Ports.

Die wichtigsten Funktionen im Überblick:

Konnektivität: 4G LTE (Cat 4), 3G, 2G - für stabile und schnelle Mobilfunkverbindungen.
PoE-In/Out 1 x PoE-In- und 1 x PoE-Out-Port
Dual SIM: Dual-SIM mit automatischer Ausfallsicherung und anderen Umschaltszenarien
Protokoll-Unterstützung für vielseitige IoT-Anwendungen.
Schutzfaktor IP55 für den Einsatz im Freien
inkl. Montagewinkel für vertikale flache Oberfläche oder Mastmontage
Abmessungen (B x H x T): 110 x 49,30 x 235 mm
Gewicht: 315 g

komfortabler PoE-Anschluss

PoE IN: 1 x PoE In / PoE standards 802.3af/at
PoE OUT: 1 x PoE Out / PoE standards 802.3af Alternative B (zum Beispiel für Cloud-Kameras oder Überwachungskameras)
PoE Max Power per Port (at PSE): 15 W Max (power supply unit dependent)

Anwendungsbereiche Teltonika OTD140 Outdoor-Router:

mobilen Videoüberwachung an Kameramasten &amp. Videotürme
mobiles Internet auf Baustellen, Container, Windrad, Solarpark

EIGENSCHAFTEN

Produktart

Typ: Router Zubehörartikel
Farbe: Weiß
Anwendung: Videoüberwachung IT

TECHNISCHE DATEN

Mobile
Mobile module: 4G LTE up to 150 DL/50 UL Mbps. 3G up to 21 DL/ 5.76 UL Mbps. 2G up to 236.8 DL/236.8 UL Mbps
3GPP Release: Release 9
SIM switch: 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status: IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD: Supports sending and reading Unstructured Supplementary Service Data messages
Block/Allow list: Operator block/allow list (by country or separate operators)
Band management: Band lock, Used band status display
SIM PIN code management: SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
APN: Auto APN
Bridge: Direct connection (bridge) between mobile ISP and device on LAN
Passthrough: Router assigns its mobile WAN IP address to another device on LAN
Ethernet
LAN: 2 x ETH ports (can be configured as WAN), 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
POE IN: PoE ports1 x PoE In / PoE standards 802.3af/at
POE OUT: PoE ports 1 x PoE Out / PoE standards 802.3af Alternative B
PoE Max Power per Port (at PSE): 15 W Max (power supply unit dependent)
Network
Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall: Port forward, traffic rules, custom rules, TTL target customisation
Firewall status page: View all your Firewall statistics, rules, and rule counters
Ports management: View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
Network topology: Visual representation of your network, showing which devices are connected to which other devices
DHCP: Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / Smart Queue Management (SQM): Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS: Supported &gt.25 service providers, others can be configured manually
DNS over HTTPS: DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
Network backup: VRRP, Wired options, each of which can be used as an automatic Failover
Hotspot: Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
SSHFS: Possibility to mount remote file system via SSH protocol
Traffic Management: Real-time monitoring, wireless signal charts, traffic usage history?
Security
Authentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal &amp. External RADIUS users authentication, IP &amp. login attempts block, time-based login blocking, built-in random password generator
Firewall: Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN: Port and tag-based VLAN separation
Mobile quota control: Mobile data limit, customizable period, start time, warning limit, phone number
WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access control: Flexible access control of SSH, Web interface, CLI and Telnet
SSL certificate generation: Let's Encrypt and SCEP certificate generation methods
802.1x: Port-based network access control server
VPN
OpenVPN: Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption: DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
IPsec: XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE: GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP: Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN: Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
SSTP: SSTP client instance support
ZeroTier: ZeroTier VPN client support
WireGuard: WireGuard VPN client and server support
Tinc: Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.
Monitoring &amp. Management
WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA: Firmware update from server, automatic notification
SSH: SSH (v1, v2)
Email: Receive email message status alerts of various services
SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call: Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer
TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT: MQTT Broker, MQTT publisher
SNMP: SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC: Management API over HTTP/HTTPS
RMS: Teltonika Remote Management System (RMS)
IoT Platforms
ThingWorx: Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity - Cloud of Things: Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions
Azure IoT Hub: Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
AWS IoT Core: Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality
System Characteristics
CPU: Mediatek, 580 MHz, MIPS 24KEc
RAM: 128 MB
FLASH storage: 16 MB
Power
Connector: RJ45 Socket
Input voltage range: 42.5–57.0 VDC, reverse polarity protection, voltage surge/transient protection
Input voltage range for PoE: 42.5–57.0 VDC, reverse polarity protection, voltage surge/transient protection
Power consumption: Idle: &lt. 2.5 W / Max: &lt. 6 W / PoE Max &lt. 21 W
Physical Interfaces
Ethernet: 2 x RJ45 ports, 10/100 Mbps
Status LEDs: 3 x Mobile connection type, 3 x Mobile connection strength, 4 x ETH status LEDs
SIM: 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V
Power: RJ45, PoE In, 42.5 – 57.0 VDC
Antennas: 2 x Internal antennas
Antennas specifications: 2 x 698 - 960 / 1710 - 2690MHz, 50 O, VSWR &lt.3, gain &lt.4.5 dBi, omnidirectional
Reset: Reboot/User default reset/Factory reset button
Physical Specification
Casing material: Plastic (PC+ASA)
Dimensions (W x H x D): 110 x 49.30 x 235 mm
Weight: 315 g
Mounting options: Mounting bracket (for vertical flat surface or pole mounting)
Operating temperature: -40 °C to 75 °C
Operating humidity: 10% to 90% non-condensing
Ingress Protection Rating: IP55

LIEFERUMFANG

1x Teltonika OTD140 Outdoor-Router 4G LTE PoE IP55
inkl. Montagewinkel für vertikale flache Oberfläche oder Mastmontage

Angaben gemäß EU-Verordnung (EU) 2023/988 (GPSR):
Teltonika Networks
K. Baršausko st. 66, 51436 Kaunas, Litauen
Webadresse: www.teltonika-networks.com

Hersteller gemäß GPSR
Teltonika
