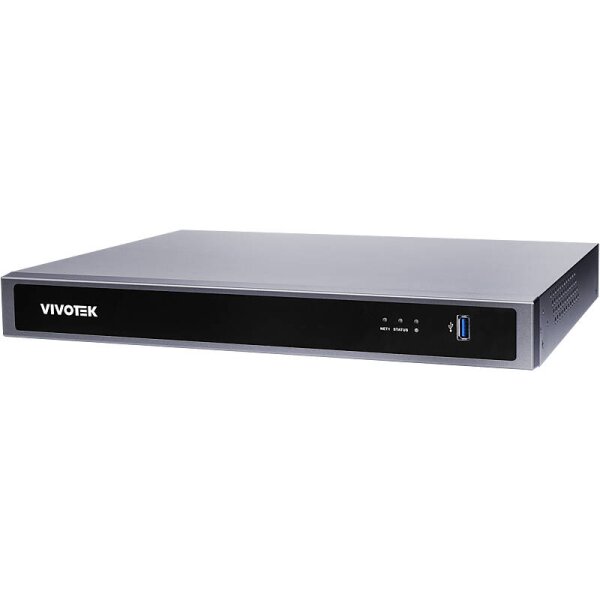

VIVOTEK ND9426P 16-Kanal NVR 4K PoE, HDMI/VGA

Artikelnummer: EX-10036758

Kategorie: NVR - Netzwerk Video Rekorder

Lieferzeit: 4 Werktage DE

586,48 €

inkl. 19% USt. ,

VIVOTEK ND9426P 16-Kanal NVR 4K PoE, HDMI/VGA NVR (4K Ultra HD max. Bildauflösung) Features: mit PoE-Switch (Stromversorgung für Kameras), Trend Micro IoT Security, H.265, H.264, MJPEG, NDAA (National Defense Authorization Act), Smart VCA, AI-powered, Shepherd, iViewer, VSS (VAST Security Station), Smart Search II, VORTEX Connect max. Kamera-Anzahl: 16 max. Festplatten-Anzahl: 2 max. Festplatten-Kapazität: 12 TB Audiounterstützung: Ja RAID-Typ: RAID 0, RAID 1

Stk

Beschreibung

Device

Model: ND9426P
Watchdog: Hardware + Sof tware
Power Restoration: System Restart Automatically after Power Recovery
Reset Button: YES

Display

LiveView Display:

16 Channels
Multi Layout Display: 1x1, 2x2, 3x3, 4x4, 1M+5,1M+12, 1P+3,1P+6,2P+3, 3V

Video Output: HDMI x1, VGA x1
Display Resolution:

3840x2160, 1920x1080, 1280x720
HDMI up to 3840 x2160, VGA up to 1920 x1080p

Fisheye Dewarp:

Local: 1O, 1P, 1R, 1O3R, 1O8R, 1P3R
Web: 1O, 1R, 1P

PTZ Operation: Direction Control, Home, Iris, Preset, Patrol (Group)

Video

Video Format: MJPEG, H.264, H.265
Graphic Decoder: Hardware decoding
Decoding Resolution: Up to 7680x2560
Decoding Capability:

H.265/ H.264:

3840x2160 @ 120 fps (4-CH)
1920x1080 @ 480 fps (16-CH)

Audio

Audio Format: G.711, G.726
Audio In/Out:

3.5 Phone Jack Audio Output x1
3.5 Phone Jack Audio Input x1

Record

Recording Time (sec.):

Pre-Record: 5 (Max. 10)
Post-Record: 20 (Max. 300)

Recording Throughput: 192 Mbps
Recording Mode: Continuous, Schedule, Manual, Event
Recording Setting: Recycle (unit: Day )

Storage & Backup

HDD Devices: Internal x2 (3.5")
RAID: RAID 0,1
Disk Management:

Create, Format and Remov e Disk
HDD S.M.A.R.T

External Storage: USB Storage (USB 3.0)
Video Clip Export: USB Dongle (FAT Format)
Schedule Backup: FTP

Playback

Playback Display:

4 Channels
Multi Layout Display

Playback Control: Regular (Play, Pause, Stop), Rewind, Next / Previous Frame, Speed Control, Calendar, Event, Timeline, Timeline Scale, Thumbnail (Story board)
Video Search: By calendar, date/time, and alarm
Thumbnail Explorer (Story board): Listing the thumbnail of recorded video (Max. 2 CH)
Snapshot: JPEG
Video Clip Export: Supported

Network

Ethernet: 10/100/1000Mbps Ethernet (RJ-45) x2
Network Throughput Input/Output Total: 224Mbps
PoE: 802.3at/af compliant PoE ports x 16 (total Max. 200W)
PoE Management: Supported
Protocols: IPv4, IPv6, TCP/ IP, HTTP, HTTPS, UPnP, RTSP/ RTP/ RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS

External Interface

USB:

Front x1 (USB 3.0)
Back x2 (USB 2.0)

Alarm In: 4
Alarm Out: 1
Audio:

3.5 Phone Jack Audio Output x1
3.5 Phone Jack Audio Input x1 (reserv ed)

System

Camera Integration: ONVIF Profile S
Event: Motion Detection, Smart VCA Event, Cyber Attack, PIR Detection, Tampering Detection, Camera DI/ DO, Camera Disconnected, Disk Failure, Disk Full, NVR DI/ DO, PoE error
Event Action: Video recording, email with snapshot, buzzer, PTZ, FTP, DO (camera, system), full screen, send to CMS,VIVOCloud APP Notif ication
User Management: User level: administrator, regular user
Log: System, Recording, User, Error
Date & Time: Time Zone, Manual, Automatic Sync NTP, Day light Saving Time
Language: Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Polish, Russian, Spanish, Simplif ied Chinese, Traditional Chinese, Arabic
