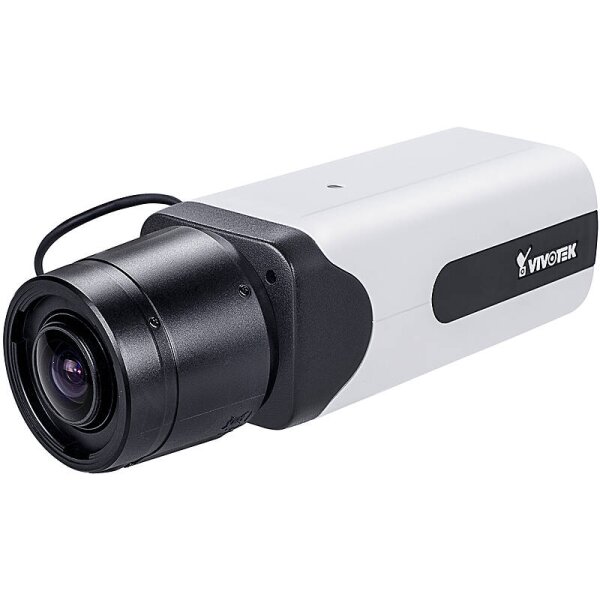

VIVOTEK IP9191-HT-v2(NON-LENS) IP-Kamera 4K TN PoE

Artikelnummer: EX-10036626

Kategorie: Boxed Type

Lieferzeit: 10 Werktage DE

1.022,20 €

inkl. 19% USt. ,

VIVOTEK IP9191-HT-v2(NON-LENS) IP-Kamera 4K TN PoE 4K Ultra HD Boxed Kamera Blickwinkel: 118° Features: Deep Learning (intelligente Analysen), WDR Pro (Wide Dynamic Range), SNV (Supreme Night Visibility), Trend Micro IoT Security, MicroSD/SDHC/SDXC Card Slot, H.265, H.264, MJPEG, Smart Stream III, 3DNR, Stratocast, NDAA (National Defense Authorization Act), Smart VCA, AI-powered Audiounterstützung: Ja SD-Karten-Slot: Ja Zoom: 48x digital Gegenlichtkompensation: Ja

Stk

Beschreibung
Benachrichtigen, wenn verfügbar

System Information

Model:

IP9191-HT-V2 (3.9-10mm)
IP9191-HT-V2 (Non Lens)

CPU: Multimedia SoC (System-on-Chip)
Flash: 8 GB eMMC
RAM: 2 GB

Camera Features

Image Sensor: 1/1.8" Progressive CMOS
Max. Resolution: 3840 x 2160 (16:9)
Lens Type: Vari-focal, Remote Focus, i-CS
Focal Length: f = 3.9~10mm
Aperture: F1.5
Iris Type: DC-iris, P-iris, i-CS
Field of View:

118.7°~45.6° (Horizontal)
62.9°~25.6° (Vertical)
141.9°~52.4° (Diagonal)

Shutter Time: 1/100,000 s to 1 sec
WDR Technology: WDR Pro
Day /Night: Yes
Removable IR-cut Filter: Yes
Minimum Illumination:

0.02 lux @ F1.5 (Color)
0.005 lux @ F1.5 (B/W)

Pan/ Tilt/ Zoom Functionalities: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage: Seamless Recording to MicroSD/ SDHC/ SDXC card and recording to network-attached storage (NAS)
Built-in Installation: Aids Remote back focus, BNC (CVBS)*
*only 2MP mode available

Video

Video Compression: H.265, H.264, MJPEG
Maximum Frame Rate:

30 fps @ 3840x2160 (WDR Pro on)
60 fps @ 1920x1080 (WDR Pro off )

Maximum Streams: 3 video streams (Up to 8 configurable profiles)
S/N Ratio: 60 dB
Dynamic Range: 120 dB
Video Streaming: Adjustable resolution, quality and constant bit rate control, Smart Stream III
Image Settings:

General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day /night settings
Illuminators: illuminators, anti-overexposure
Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, LDC, EIS*, scene mode (auto, deblur)
Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR
Focus: zoom, focus
Privacy mask Scheduled profile settings

Audio

Audio Capability: Two-way Audio
Audio Compression: AAC, G.711, G.726
Audio Interface:

External microphone input
External line output

Network

Users: Live viewing for up to 10 clients
Security: Access list, Account block, Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS , IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (Brute force attack event, Cyberattack event, Quarantine event), User access log, User account management
Protocols: 802.1X, ARP, Bonjour, CIFS/ SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/ DSCP), RTSP/ RTP/ RTCP, SMTP, SNMP, SSL, SFTP, TCP/ IP, TLS 1.2, UDP, UPnP
Interface:

10 Base-T/100 Base-TX/1000 Base-T Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.

ONVIF: Profile G, S, T supported, specification available at www.onvif.org

AI Analytics

Compute Capability SoC: with built-in hardware deep learning accelerator
Vision Object Analytics:

Object Detection: people, vehicle (4-wheeled, 2-wheeled)
Attribute Extraction: people (gender, color, bag, hat), vehicle (bike, bus, car, motorcycle, truck, color)
Re-Search Extraction Path Extraction

Application:

Deep Learning VCA (Smart Motion Detection)
Smart VCA with i-CS lens Smart VCA (Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Unattended object detection, Missing object detection, Crowd detection)
Smart VCA with non i-CS lens Smart VCA (Smart VCA (Intrusion detection, Loitering
detection, Line crossing detection)

Application available with license:

Running detection, Parking Violation Detection, Restricted Zone Detection
Support for more analytic applications and free trial, please visit vivotek.com/video-analytics

Solution Integration

VADP Package: Stratocast, Trend Micro IOT Security (3-y ear free trial)

Alarm and Event

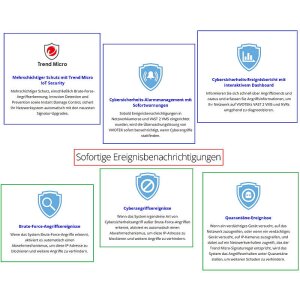

Event Trigger: Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
Event Action: Event notification via audio clip, camera link, digital output, email, HTTP, FTP/ SFTP, NAS server, SD card, push notification, File upload via email, HTTP, FTP/ SFTP, NAS server, SD card

General

Connectors:

RJ-45 cable connector f or 10/100/1000Mbps Network/ PoE connection
Audio line input
Audio line output
AC 24V power input *1
DC 12V power input *1
Digital input *2
Digital output *2 (12V, 50mA)
RS485*1
BNC *1

LED Indicator: Sy stem power and status indicator
Power Input: AC 24V, DC 12V, IEEE 802.3af PoE Class 0
Power Consumption:

DC 12V: Max. 8.88 W
AC 24V: Max. 17 W
PoE: Max. 10 W

Dimensions:

155 (D) x 70 (W) x 61 (H) mm (w/o lens)
210 (D) x 70 (W) x 66 (H) mm (w/ lens)

Weight:

680 g (w/o lens)
790 g (w/ lens)

Certifications: LVD, FCC Class B, VCCI, C-Tick, UL/ CUL, BIS, BSMI
Operating Temperature:

Start Temperature: 0°C ~ 50°C (32°F ~ 122°F)
Working temperature: -10°C ~ 60°C (14°F ~ 140°F)

Humidity: 90% (non-condensing)

System Requirements

Operating System:

Microsoft Windows 10/8/7
Mac 10.12 (Chrome only )

Web Browser:

Chrome 58.0 or above
Internet Explorer 10/11

Other Players: VLC: 1.1.11 or abov e

Included Accessories

Packing Contents: Quick installation guide, lens

Angaben zur Produktsicherheit:

Hersteller:
Vivotek EMEA
Zandsteen 15
2132 MZ Hoofddorp
Kontakt: lynn.chiang@vivotek.com

Hersteller:	Vivotek
