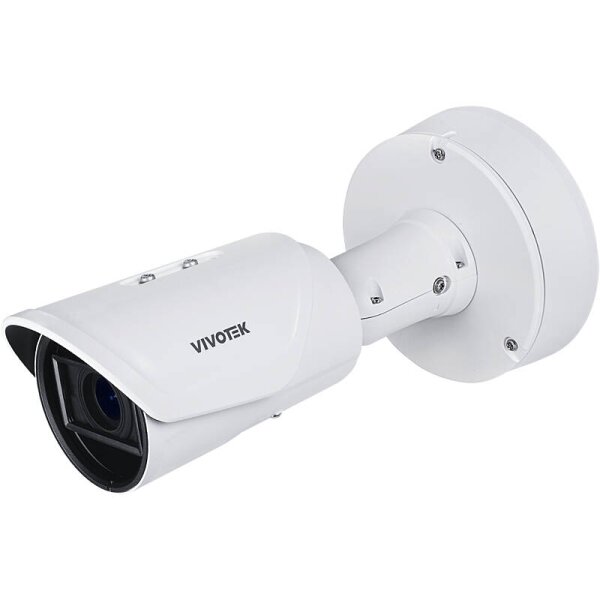

VIVOTEK IB9365-EHTV-v2 IP-Kamera 1080p T/N IR PoE

Artikelnummer: EX-10036620

Kategorie: Bullet Kameras

Lieferzeit: 4 Werktage DE

868,68 €

inkl. 19% USt. ,

VIVOTEK IB9365-EHTV-v2 IP-Kamera 1080p T/N IR PoE 1080p Bullet Kamera Blickwinkel: 100° - 46° (Objektiv-Brennweite 4 - 9 mm) Features: Deep Learning (intelligente Analysen), WDR Pro (Wide Dynamic Range), Trend Micro IoT Security, MicroSD/SDHC/SDXC Card Slot, H.265, H.264, MJPEG, Smart Stream III, 3DNR, Smart IR, Stratocast, NDAA (National Defense Authorization Act), Smart Motion Detection, Smart VCA, AI-powered, SNV II, Unterstützt Perimeterschutz Nachtsicht: per Infrarot (Reichweite bis zu 50 m) Audiounterstützung: Ja Vandalismusschutz: Ja SD-Karten-Slot: Ja

Stk

Beschreibung

System Information

Model: IB9365-EHTV-v 2
CPU: Multimedia SoC (System-on-Chip)
Flash: 8 GB
RAM: 2 GB

Camera Features

Image Sensor: 1/2" Progressive CMOS
Max. Resolution: 1920x1080 (2MP)
Lens Type: Motorized, Vari-focal, Remote Focus
Focal Length: f = 4 ~ 9 mm (f = 3.5~11.4 mm, equivalent focal length @ 1/2.8")
Aperture: F1.3 ~ 2.2
Iris Type: P-iris
Field of View:

100° ~ 46° (Horizontal)
52° ~ 26° (Vertical)
120° ~ 53° (Diagonal)

Shutter Time: 1 sec. to 1/100,000 sec.
WDR Technology: WDR Pro II
Day /Night: Yes
Removable IR-cut Filter: Yes
IR Illuminators: Built-in IR illuminators, effective up to 50 meters with Smart IR II, IR LED*4
Minimum Illumination:

0.040 lux @ F1.3 (Color), 50IRE
0.015 lux @ F1.3 (Color), 30IRE
<0.005 lux @ F1.3 (B/W)
0 lux with IR illumination on

Pan Range: ±180°
Tilt Range: 90°
Rotation Range: ±180°
Pan/Tilt/Zoom Functionalities: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage: Seamless Recording to MicroSD/SDHC/SDXC card slot and recording to network-attached storage (NAS)
Built-in Installation Aids:

Remote focus, remote zoom, Micro USB*, pixel calculator
*Requires Wi-Fi dongle and Micro B converter

Video

Video Compression: H.265, H.264, MJPEG
Maximum Frame Rate: 60 fps @ 1920x1080
Maximum Streams: 3 video streams (Up to 8 configurable profiles)
S/N Ratio: 58 dB
Dynamic Range: 140 dB
Video Streaming: Adjustable resolution, quality and constant bit rate control, Smart Stream III
Image Settings:

General settings: video title and time stamp overlay, video orientation (f lip, mirror, rotation), day /night settings
Illuminators: illuminators, Smart IR (target zone)
Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, LDC, EIS, scene mode (auto, deblur)
Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR
Focus: zoom, focus Privacy mask Pixel calculator Scheduled profile settings

Audio

Audio Capability: Two-way audio (Full duplex)
Audio Compression: G.711, G.726
Audio Interface:

External microphone input
External line output

Network

Users: Live viewing for up to 10 clients
Security: Access list, CSRF protection, digest authentication, HTTPS , IEEE 802.1x, password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack ev ent, quarantine event), user access log, user account management
Protocols: 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP/HTTPS, ICMP, IGMPv 3, IPv 4, IPv 6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface:

10 Base-T/100 Base-TX Ethernet
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.

ONVIF: Profile G, S, T supported, specification available at www.onvif.org

AI Analytics

Compute Capability: Built-in CNN acceleration module
Vision Object Analytics:

Object Detection: people, vehicle (4-wheeled, 2-wheeled)
Attribute Extraction: people (gender, color, bag, hat), vehicle (bike, bus, car, motorcycle, truck, color)
Re-Search Extraction Path Extraction

Event Application: Smart Motion Detection (Five-window video motion detection, people detection, vehicle detection, time filter), Smart VCA (Intrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, face detection, crowd detection, running detection, parking violation detection*, restricted zone detection*)
*License required. Please access https://license.vivotek.com/ for free trial license.
AI-powered Image Enhancement: Smart IR III
Applications: Deep Learning VCA (Smart Motion Detection, Smart VCA)

Solution Integration

VADP Package: Stratocast, Trend Micro IoT Security (3-year free trial)

Alarm and Event

Event Trigger: Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, sy stem boot
Event Action: Event notification via audio clip, camera link, digital output, email, HTTP, FTP/ SFTP, NAS server, SD card File upload via email, HTTP, FTP/ SFTP, NAS server, SD card

General

Connectors:

RJ-45 cable connector f or 10/100 Mbps PoE network connection
Audio line input
Audio line output
DC 12V power input
AC 24V power input
Digital input*3
Digital output*3
Micro USB

LED Indicator: System power and status indicator
Power Input: AC 24V, DC 12V, IEEE 802.3at PoE Class 4 (Power Redundancy )
Power Consumption:

PoE: Max. 22.23/18.65 W (IR on/off)
DC 12V: Max. 17.28/13.70 W (IR on/off)
AC 24V: Max. 18.26/14.68 W (IR on/off)

Dimensions: ø 153 x 283 mm
Weight: 1.86 kg
Certifications: EMC: CE (EN 55032/EN 55035 Class A, EN 50121-4), FCC (FCC Part 15 Subpart B Class A), UKCA (BS EN 55032/ BS EN 55035 Class A), RCM (AS/ NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), IC (ICES-003 Issue 7) Safety : UL (UL 62368-1), CB (IEC/ EN
62368-1, IEC/ EN 60950-22, IEC/ EN 62471), LVD, (EN 62368-1), UKCA (BS EN IEC 62368-1) Environment: IK10 (IEC 62262), IP66/67 (IEC 60529), NEMA (NEMA 250 Type 4X), IEC 60068-2-11 IA: BIS (IS 13252), BSMI (EMC: CNS 15936, Safety : CNS 15598-1)
Operating Temperature:

Starting Temperature:

-30°C ~ 60°C (-22°F ~ 140°F)

Working Temperature:

-50°C ~ 60°C (-58°F ~ 140°F) (IR off)
-50°C ~ 50°C (-58°F ~ 122°F) (IR on)

Humidity: 98% RH (non-condensing)

System Requirements

Operating System:

Microsoft Windows 10/8/7
Mac 10.12 (Chrome only )

Web Browser:

Chrome 58.0 or above

Other Players: VLC: 1.1.11 or above

Included Accessories

Packing Contents: Quick installation guide, product labels, alignment sticker, L-shaped wrench, screw pack, waterproof accessory pack, sunshield, I/O cable, adaptor plate, conduit bracket
Optional Accessories: Please refer to Accessory Selection Guide

DORI (EN 62676-4 Standard)
