VIVOTEK FE9380-HV IP-Kamera 5MPx T/N IR PoE IP66

Artikelnummer: EX-10036475

Kategorie: Fix Domes

Lieferzeit: ca. 3 Wochen DE

441,02 €

inkl. 19% USt. ,

VIVOTEK FE9380-HV IP-Kamera 5MPx T/N IR PoE IP66 5 Megapixel Fisheye Kamera Blickwinkel: 360° (Objektiv-Brennweite 1,22 mm) Features: WDR Pro (Wide Dynamic Range), SNV (Supreme Night Visibility), Trend Micro IoT Security, MicroSD/SDHC/SDXC Card Slot, H.265, H.264, MJPEG, Smart Stream III, 3DNR, aws (Amazon Kinesis Video Streams), Smart IR, Stratocast, NDAA (National Defense Authorization Act) Nachtsicht: per Infrarot (Reichweite bis zu 10 m) Audiounterstützung: Ja Vandalismusschutz: Ja SD-Karten-Slot: Ja

Stk

Beschreibung

System Information

Model: FE9380-HV
CPU: Multimedia SoC (Sy stem-on-Chip)
Flash: 128 MB
RAM: 512 MB

Camera Features

Image Sensor: 1/2.7" Progressiv e CMOS in 2688x1944
Max. Resolution: 1920x1920
Lens Ty pe: Fixed-f ocal
Focal Length: f = 1.16 mm
Aperture: F2.25
Iris Type: Fixed iris
Field of View:

180° (Horizontal)
180° (Vertical)
180° (Diagonal)

Shutter Time: 1/5 sec. to 1/32,000 sec.
WDR Technology: WDR Pro
Day /Night: Yes
Removable IR-cut Filter: Yes
IR Illuminators: Built-in IR illuminators, ef f ectiv e up to 10 meters with Smart IR, IR LED*4
Minimum Illumination:

0.05 lux @ F2.25 (Color)
<0.005 lux @ 2.25 (B/W)
0 lux with IR illumination on

Pan/Tilt/Zoom Functionalities: ePTZ: 12x digital zoom (12x on IE plug-in)
Storage: Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)

Video

Video Compression: H.265, H.264, MJPEG
Maximum Frame Rate:

24 f ps @ 1920x1920 (WDR on)
30 f ps @ 1920x1920 (WDR of f )

Maximum Streams: 4 v ideo streams (Up to 9 conf igurable prof iles)
S/N Ratio: 63 dB
Dynamic Range: 120 dB
Video Streaming: Adjustable resolution, quality and bit rate control, Smart Stream III
Image Settings:

General settings: video title and time stamp ov erlay, video orientation (f lip, mirror), day /night settings
Illuminators: illuminators, anti-ov erexposure
Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curv e), defog, 3DNR, HLM, DIS, scene mode (auto, deblur)
Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), WDR
Privacy mask Scheduled prof ile settings

Display Mode:

Client dewarping:

Ceiling mounted: 1O Fishey e, 1P Panoramic, 2P Two Panoramics, 1R One Region, 4R Four Regions, 1O3R One Fishey e Three Regions, 1O8R One Fishey e Eight Regions
Wall mounted: 1O Fishey e, 1P Panoramic, 1R One Region, 4R Four Regions, 1P2R One Panoramic Two Regions, 1P3R One Panoramic Three Regions, 1O3R, One Fishey e Three Regions

Local dewarping:

Ceiling mounted: 1O Fishey e, 1P Panoramic, 2P Two Panoramics, 1R One Region, 4R Four Regions
Wall mounted: 1O Fishey e, 1P Panoramic, 1R One Region, 4R Four Regions

Audio

Audio Capability: One-way Audio
Audio Compression: G.711, G.726
Audio Interf ace: Built-in microphone
Effective Range: 5 meters

Network

Users: Live viewing f or up to 10 clients
Security: Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed firmware, Trend Micro IoT Security (brute f orce attack ev ent, cy berattack ev ent, quarantine ev ent), user access log, user account management
Protocols: 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv 3, IPv 4, IPv 6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface:

10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.

ONVIF: Prof ile G, S, T supported, specif ication av ailable at www.onv if .org

Solution Integration

Video Motion Detection: Five-window v ideo motion detection
VADP Package: Stratocast, Trend Micro IoT Security (1-y ear f ree trial)

Alarm and Event

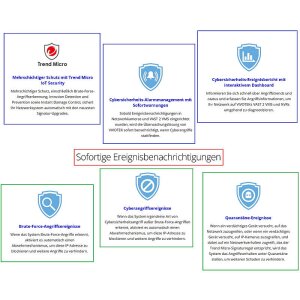

Event Trigger: Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notif ication, SD card life expectancy, shock detection, system boot
Event Action: Ev ent notif ication v ia email, HTTP, FTP, NAS serv er, SD card File upload via email, HTTP, FTP, NAS server, SD card

General

Connectors: RJ-45 cable connector f or 10/100Mbps Network/PoE connection
LED Indicator: System power and status indicator
Power Input: IEEE 802.3af PoE Class 0
Power Consumption: Max. 12 W/3.8 W (IR on/of f )
Dimensions: Ø 150 x 68.2 mm
Weight: 695 g
Certifications: EMC: CE (EN 55032 Class A), FCC (FCC Part 15 Subpart B Class A), VCCI (VCCI-CISPR 32 Class A) Saf ety : UL (UL 62368-1), CB (CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471) Env ironment: IK10 (IEC 62262), IP66 (IEC 60529) IA: BIS (IS 13252)
Operating Temperature:
