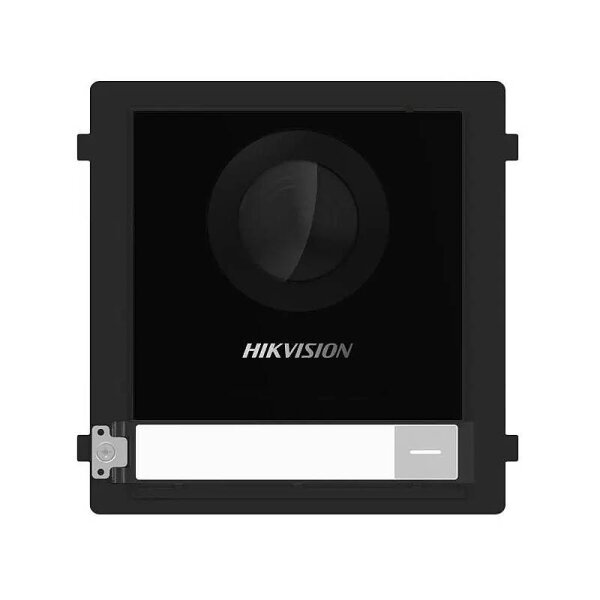

HIKVision DS-KD8003Y-IME2 2-Draht Türstation 2MP

Artikelnummer: EX-10036179

Lieferzeit: 12 Werktage DE

351,44 €

inkl. 19% USt. ,

HIKVision DS-KD8003Y-IME2 2-Draht Türstation 2MP Video-Außenstation - Modell: Pro Serie, 2-Draht-Serie Einsatzgebiet: Gewerbeobjekte, Haus Anzahl Wohneinheiten: 1 Technik: 2-Draht Auflösung: 1080p Blickwinkel: 146° Anwendung: Türsprechanlage

Stk

Beschreibung
Benachrichtigen, wenn verfügbar

System parameters

Operating system: Embedded Linux operation system
ROM: 32 MB
RAM: 256 MB
CPU: Embedded Processor

Display parameters

Screen size: NA
Operation method: NA
Type: NA
Resolution: NA

Video parameters

Video standard: H.264

Supplement light: Low illumination, IR supplement lights

Lens: 1

FOV: Horizontal: 146°, Vertical: 82°
WDR: Support
Resolution: 2 MP

Audio parameters

Audio compression standard: G.711 U, G.711 A
Audio input: Built-in omnidirectional microphone
Audio output: Built-in loudspeaker
Audio compression bitrate: 64 Kbps
Audio quality: Noise suppression and echo cancellation
Volume adjustment: Adjustable

Capacity

Fingerprint capacity: /
User capacity: 2000
Face capacity: NA
Linked indoor station capacity: 500
Event capacity: /
Sub door station capacity: 16

Network parameters

Communication protocol: NA
Wired network: NA
Wi-Fi: NA
Bluetooth: NA
3G/4G: NA

Device interfaces

Alarm input: 4 (2 exit butttons and 2 door contacts by default)
Network interface: NA
TAMPER: 1
Exit button: 2 (2 for lock control)
Door contact input: 2
RS-485: 1 (1 for Hikvision s sub module communication)
Wiegand: NA
TF card: NA
Alarm output: NA
Lock control: 2 (2 relay, max to 30 VDC, 2 A)
USB: NA
Power interface: 12VDC power output(12 V, 500 mA Max.)
Two-wire IP interface: 1

General

Button: 1
Installation: Surface mounting & flush mounting
Indicator: 0
Weight: 373.5 g
Protective level: IP65
Working temperature: -40° C to 60° C (-22° F to 140° F)
Working humidity: 10% to 90%
Dimensions: 100 mm × 98 mm × 42 mm
Battery: /
Power supply: Powered by KAD704Y or KAD706Y series distributor
Application environment: Outdoor
Power consumption: = 4 W

Language: English, French, Portuguese, BrazilianPortuguese, Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Slovak
